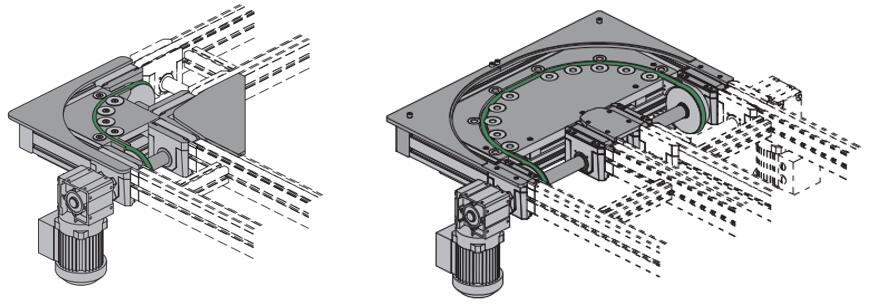

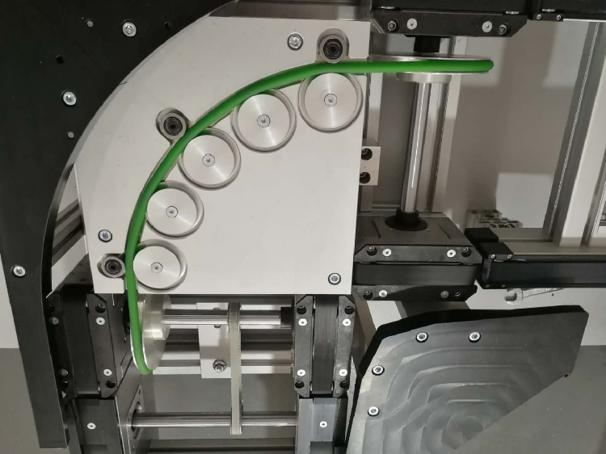

傳輸介質為多種：皮帶式，滾筒式，鏈板式，圓帶式

Transmission medium for a variety of: Belt Type, drum type, chain plate type, round belt type

最大單機負載為3000kg最大運行速度為30m/min

The maximum single machine load is 3000kg and the maximum operating speed is 30m/min

轉彎內半徑300-1500mm，角度有45/60/90/180度。

Turn Radius 300-1500 mm, angle 45/60/90/180 degrees.

該機型支持正反轉

This model supports forward and reverse

型號說明：

Model description:

LR    -   ZWJ   -   PD   /   90

 1           2           3          4

1---品牌LINRYAIE的簡稱

The abbreviation for the brand LINRYAIE

2---轉彎機代號

Code for turning machine

3---輸送介質，PD代表皮帶，GT代表滾筒，LB代表鏈板，YD代表圓帶Conveying medium, PD represents belt, GT represents roller, LB represents chain plate, YD represents round belt

4---轉彎角度，30/45/60/90/180分別代表對應的角度

The angle of turn, 30/45/60/90/180, represents the corresponding angle
