LR-BS系列的標準托盤輸送機傳輸介質為倍速鏈，主要用于負載中度的場合。

      LR-BS系列的標準托盤輸送機常用的倍速鏈規格主要有單倍速鏈，節距12.75；2.5倍速鏈，節距19.05/25.4兩種；3倍速鏈，節距38.1. 適用于電池模組、汽車及發動機零配件的生產、白色家電的生產及裝配等。

     LR-BS系列的標準托盤輸送機的輸送模塊耐磨條分為UPE和不銹鋼兩種，針對不同的輸送負載、溫度、噪音等應用場景選取相應的耐磨條使用，可以較好地滿足對靜音或較重負載的個性化需求。

     LR-BS series of standard pallet conveyor transmission medium for double-speed chain, mainly used for medium load occasions.

     LR-BS series of standard pallet conveyor commonly used speed chain specifications are mainly single-speed chain, pitch 12.75; 2.5 speed chain, Pitch 19.05/25.4 two; 3 speed chain, pitch 38.1. It is suitable for the production of battery module, Automobile and engine parts, the production and assembly of white household appliances, etc. .

      LR-BS series of standard tray conveyor conveyor conveyor conveyor wear-resistant strip is divided into UPE and stainless steel,according to the different transport load, temperature, noise and other applications choose the appropriate wear-resistant strip use, the utility model can better meet the individualized demand for mute or heavy load.

型號說明：

Model description:

LR    -   BS   -   1012   /   Q   /   Y   /   DZ

1           2            3           4       5        6

1---品牌LINRYAIE的簡稱

  The abbreviation for the brand LINRYAIE

2---輸送介質為倍速鏈

  The transport medium is a double-speed chain

3---倍速鏈型號，1012是節距12.75的單倍速鏈，2519是節距為19.05的2.5倍速鏈；2525為節距25.4的2.5倍速鏈；3038為節距38.1的3倍速鏈

  Double speed chain model, 1012 is single-speed chain with 12.75 pitch；2519 is 2.5-speed chain with 19.05 pitch； 2525 is 2.5-speed chain with 25.4 pitch and 3038 is triple-speed chain with 38.1 pitch

4---輸送承載力，Q為輕型，Z為重型

Conveying capacity, Q for Light, Z for heavy

5---電機的位置，輸送方向的右側為Y，左側為Z

The position of the motor is y on the right and Z on the left

6---DZ為定制版，空置為常規制作

DZ For custom plate, vacant for the general production

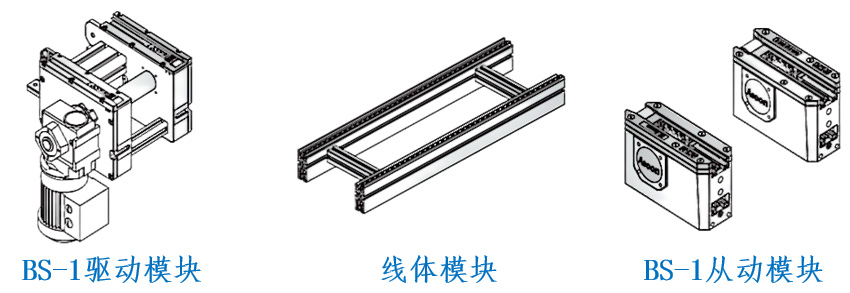

LR-BS系列的標準托盤輸送機由BS-1驅動模塊、BS-2從動模塊、線體模塊及支腿模塊組成。不同的型號尺寸差異較大，所適用的型材、摩擦條及鏈條不同。

LR-BS series Standard Pallet Conveyor is composed of BS-1 driving module, BS-2 driven module, line body module and leg module. Different models vary greatly in size, the applicable profile, friction strip and chain are different.dule.
